Captive Screws

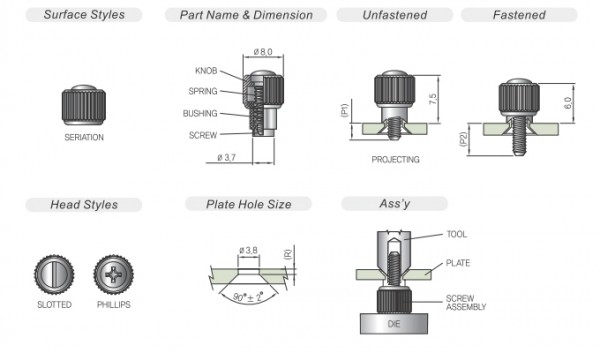

Flare-in Style (METRIC METAL Type) M23 (M2.5)

본문


- 다양한 위치에 설치 가능

- 고강도 나사로 강력한 체결력
- 공구 없이도 신속하게 잠김

- Knob : Aluminium, Natural or Black Anodizing
- Bushing : Aluminium, Natural
- Spring, Screw : Stainless Steel, Passivated



Plate-Thickness(T) 1.0 1.5
Plate Hole Length(R) 0.5 0.7
Screw Size 10.0 11.0 12.0 10.0 11.0 12.0
Screw 돌출높이 (P1) 1.5 2.5 3.5 1.5 2.5 3.5
Screw 돌출높이 (P2) 4.0 5.0 6.0 4.0 5.0 6.0
Part
Number		 Slotted Natural M23-10S1N-10 M23-10S1N-11 M23-10S1N-12 M23-15S1N-10 M23-15S1N-11 M23-15S1N-12
Black M23-10S1B-10 M23-10S1B-11 M23-10S1B-12 M23-15S1B-10 M23-15S1B-11 M23-15S1B-12
Phillips Natural M23-10S2N-10 M23-10S2N-11 M23-10S2N-12 M23-15S2N-10 M23-15S2N-11 M23-15S2N-12
Black M23-10S2B-10 M23-10S2B-11 M23-10S2B-12 M23-15S2B-10 M23-15S2B-11 M23-15S2B-12

Plate-Thickness(T) 2.0 2.7
Plate Hole Length(R) 1.0 1.5
Screw Size 10.0 11.0 12.0 11.0 12.0 13.0
Screw 돌출높이 (P1) 1.5 2.5 3.5 2.5 3.5 4.5
Screw 돌출높이 (P2) 4.0 5.0 6.0 5.0 6.0 7.0
Part
Number		 Slotted Natural M23-20S1N-10 M23-20S1N-11 M23-20S1N-12 M23-27S1N-11 M23-27S1N-12 M23-27S1N-13
Black M23-20S1B-10 M23-20S1B-11 M23-20S1B-12 M23-27S1B-11 M23-27S1B-12 M23-27S1B-13
Phillips Natural M23-20S2N-10 M23-20S2N-11 M23-20S2N-12 M23-27S2N-11 M23-27S2N-12 M23-27S2N-13
Black M23-20S2B-10 M23-20S2B-11 M23-20S2B-12 M23-27S2B-11 M23-27S2B-12 M23-27S2B-13
