Captive Screws

Flare-in Style (METRIC METAL Type) M35 (M3)

본문


- 다양한 위치에 설치 가능

- 고강도 나사로 강력한 체결력
- 공구 없이도 신속하게 잠김

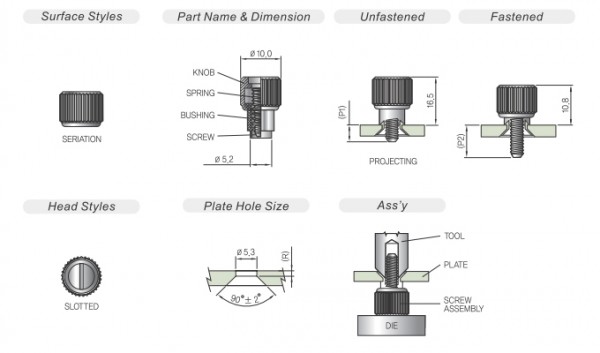

- Knob : Brass, Nickel Plated
- Bushing : Stainless Steel, Passivated
- Spring, Screw : Stainless Steel, Passivated




Plate-Thickness(T) 1.0 1.5
Plate Hole Length(R) 0.5 0.7
Screw Size 18.5           18.5
Screw 돌출높이 (P1) 2.0
2.0

Screw 돌출높이 (P2) 7.0

7.0

Part
Number		 Slotted Ni-도금 M35-10S1N-18
M35-15S1N-18


Phillips


Plate-Thickness(T) 2.0 2.7
Plate Hole Length(R) 1.0 1.0
Screw Size 18.5           18.5
Screw 돌출높이 (P1) 2.0
  2.0

Screw 돌출높이 (P2) 7.0
  7.0

Part
Number		 Slotted Ni-도금 M35-20S1N-18
  M35-27S1N-18

Phillips
