(METRIC METAL Type) M50 (M5) > Captive Screws

제품소개

  • Home
  • 제품소개
  • Captive Screws

Captive Screws

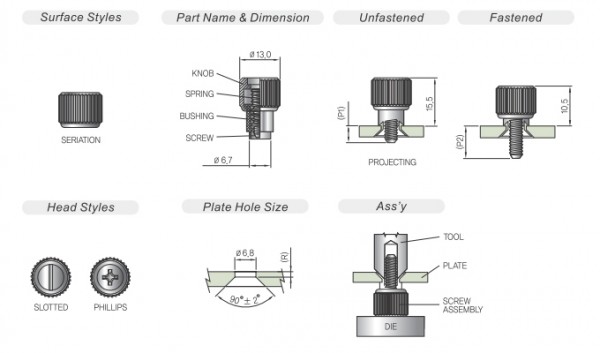

Flare-in Style (METRIC METAL Type) M50 (M5)

본문


- 다양한 위치에 설치 가능

- 고강도 나사로 강력한 체결력
- 공구 없이도 신속하게 잠김

- Knob : Aluminium, Natural or Black Anodizing
- Bushing : Aluminium, Natural
- Spring, Screw : Stainless Steel, Passivated



Plate-Thickness(T) 1.0 1.5
Plate Hole Length(R) 0.5 0.7
Screw Size 17.0 18.0 20.0 17.0 18.0 20.0
Screw 돌출높이 (P1) 2.0 3.0 5.0 2.0 3.0 5.0
Screw 돌출높이 (P2) 6.5 7.5 9.5 6.5 7.5 9.5
Part
Number		 Slotted Natural M50-10S1N-17 M50-10S1N-18 M50-10S1N-20 M50-15S1N-17 M50-15S1N-18 M50-15S1N-20
Black M50-10S1B-17 M50-10S1B-18 M50-10S1B-20 M50-15S1B-17 M50-15S1B-18 M50-15S1B-20
Phillips Natural M50-10S2N-17 M50-10S2N-18 M50-10S2N-20 M50-15S2N-17 M50-15S2N-18 M50-15S2N-20
Black M50-10S2B-17 M50-10S2B-18 M50-10S2B-20 M50-15S2B-17 M50-15S2B-18 M50-15S2B-20

Plate-Thickness(T) 2.0 2.7
Plate Hole Length(R) 1.0 1.5
Screw Size 17.0 18.0 20.0 18.0 20.0 22.0
Screw 돌출높이 (P1) 2.0 3.0 5.0 3.0 5.0 7.0
Screw 돌출높이 (P2) 6.5 7.5 9.5 7.5 9.5 11.5
Part
Number		 Slotted Natural M50-20S1N-17 M50-20S1N-18 M50-20S1N-20 M50-27S1N-18 M50-27S1N-20 M50-27S1N-22
Black M50-20S1B-17 M50-20S1B-18 M50-20S1B-20 M50-27S1B-18 M50-27S1B-20 M50-27S1B-22
Phillips Natural M50-20S2N-17 M50-20S2N-18 M50-20S2N-20 M50-27S2N-18 M50-27S2N-20 M50-27S2N-22
Black M50-20S2B-17 M50-20S2B-18 M50-20S2B-20 M50-27S2B-18 M50-27S2B-20 M50-27S2B-22
