Captive Screws

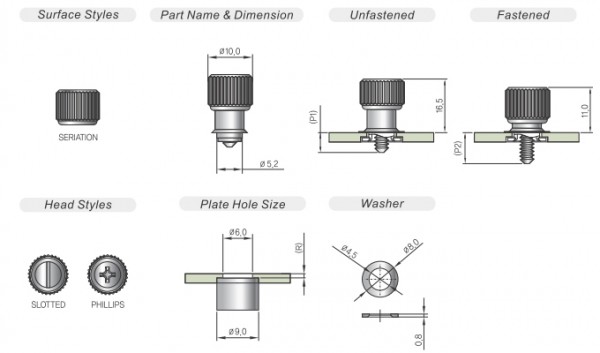

Floating Style SM32 (M3)

본문


- 다양한 위치에 설치 가능

- 고강도 나사로 강력한 체결력
- 공구 없이도 신속하게 잠김
- 편심 1.2mm 이내 조립 가능

- Knob : Aluminium, Natural or Black Anodizing
- Bushing : Aluminium, Natural
- Spring, Screw : Stainless Steel, Passivated
- Eccentricity can be assembled within 1.2mm tolerance



Plate-Thickness(T) 2.0 2.5 3.0
Plate Hole Length(R) 1.0 1.0 1.0
Screw Size 17.0 19.0 17.0 19.0 17.0 19.0
Screw 돌출높이 (P1) 0.5 2.5 0.5 2.5 0.5 2.5
Screw 돌출높이 (P2) 6.0 8.0 6.0 8.0 6.0 8.0
Part
Number		 Slotted Natural SM32-MS1N-17 SM32-MS1N-19 SM32-MS1N-17 SM32-MS1N-19 SM32-MS1N-17 SM32-MS1N-19
Black SM32-MS2N-17 SM32-MS2N-19 SM32-MS2N-17 SM32-MS2N-19 SM32-MS2N-17 SM32-MS2N-19
Phillips Natural SM32-MS2N-17 SM32-MS2N-19 SM32-MS2N-17 SM32-MS2N-19 SM32-MS2N-17 SM32-MS2N-19
Black SM32-MS2B-17 SM32-MS2B-19 SM32-MS2B-17 SM32-MS2B-19 SM32-MS2B-17 SM32-MS2B-19
